Carrier Gas Furnaces in Pomona, CA
Here is the answer Pomona Carrier HVAC repairs and installs Carrier gas furnaces across Pomona, CA ZIP 91767, including Wilton Heights and Westmont. We read 59-series flash codes, fix ignition lockouts and pressure-switch faults, and install Ultra-Low NOx models that meet California rules; replacement runs $3,000 - $7,500, so call (213) 444-4051 or book online.
At a glance facts
- Carrier furnace service across Pomona ZIPs 91766, 91767, 91768.
- Lines serviced: 59MN7 Infinity 98 modulating and 59TN6 Infinity 96, 59CU5 Infinity 95 Ultra-Low NOx, and 58TP and 58SC 80 percent furnaces.
- Furnace replacement $3,000 - $7,500; blower motor $450 - $2,300; board $400 - $2,000.

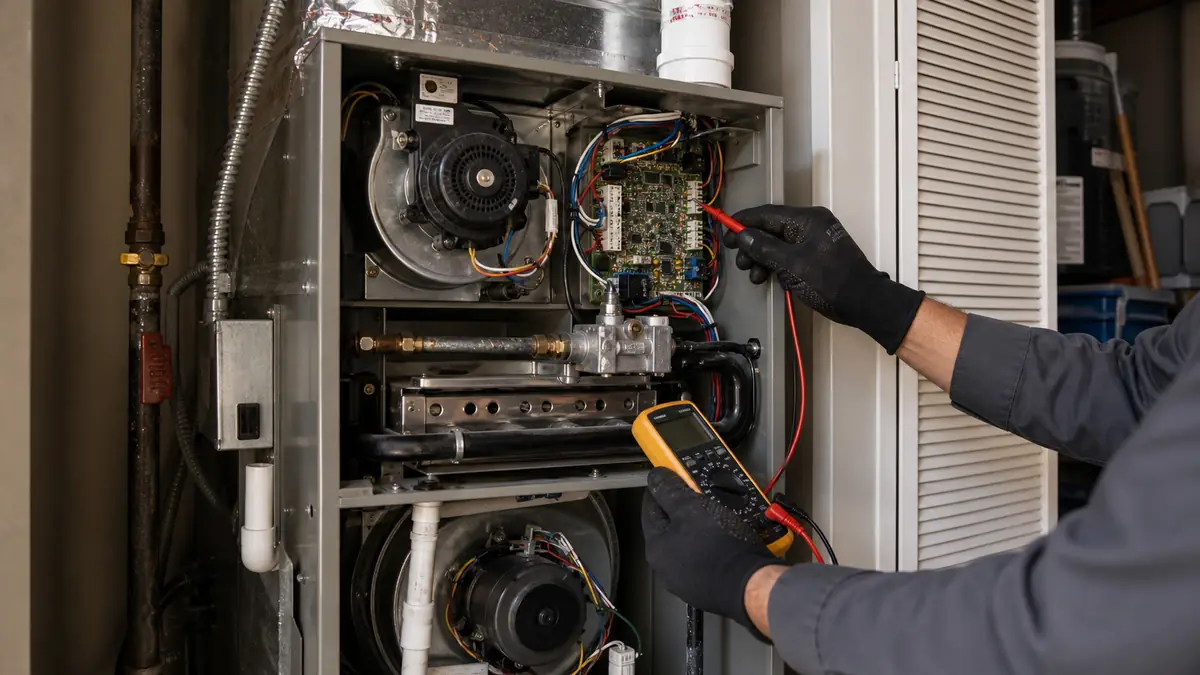

- We read amber-LED flash codes: 13/33 limit, 14 ignition lockout, 31 pressure switch, 26 rollout.
- Ultra-Low NOx models (59CU5) standard for California emissions compliance.
- Most Pomona homes pair a 59-series furnace with a Carrier condenser sharing the coil and blower.
- In-warranty parts referred to authorized Carrier service first.
What does each Carrier 59-series furnace model do?
Carrier's furnace lineup runs from a basic single-stage burner to a fully modulating, variable-speed unit, and in Pomona's short heating season the cheaper tiers are often the right call. The 80 percent models (58TP and 58SC 80 percent furnaces) vent through a metal flue and suit a mild-winter home or a tight budget. The condensing 95 to 98 percent tier captures more heat: the 59SC6 Comfort and 59TP6 Performance two-stage units run quieter and more efficiently, and the 59MN7 Infinity 98 modulating and 59TN6 Infinity 96 sit at the top, with the 59MN7 Infinity 98 pairing a modulating gas valve and a variable-speed ECM blower for the smoothest, most even heat. California's emissions rules make Ultra-Low NOx variants like the 59CU5 Infinity 95 Ultra-Low NOx common here regardless of tier. We size to the actual heating load and match the furnace blower to the Carrier coil it shares a cabinet with.
What do Carrier furnace codes 13, 31, and 34 mean?
They point to three different failure trains. Code 13 (and 33) is a limit-circuit trip from overheating - usually a dirty filter, blocked vent, or low airflow. Code 31 is a pressure-switch fault, often a clogged condensate trap, a cracked inducer hose, or a blocked flue. Code 34 is ignition proving failure: the burner lights but the flame sensor cannot confirm it, typically a dirty sensor. Reading the code first saves you from replacing the wrong part.
| Code | Meaning / first check | Cost lane |
|---|---|---|
| 13 / 33 | Limit circuit trip; filter, airflow, blocked vent | $139 - $200 |
| 14 | Hard ignition lockout; igniter, gas, or flame failure | $139 - $200 to diagnose |
| 31 | Pressure switch; inducer, condensate trap, flue | $139 - $200 |
| 34 | Ignition proving fail; clean or replace flame sensor | $150 - $350 |
| 26 | Rollout switch; STOP and inspect heat exchanger | Safety - quote after inspection |
Which Carrier furnace components fail most?
On the 59-series the failures follow a predictable order, and most are inexpensive, stocked parts. The hot-surface igniter (a silicon-nitride element on most 59-series, an older silicon-carbide bar on legacy units) micro-cracks after a few thousand 2,000 F cycles and reads open on an ohmmeter when it goes. The flame sensor is a plain rod that should pass roughly 1 to 6 microamps of flame-rectification current; once oxidation drops it below the control's threshold the burner lights and then drops out on a code 34. The pressure switch and its tubing clog with condensate in the trap and throw a code 31; the inducer motor bearings dry out and either whine or stall. The variable-speed ECM blower module is the priciest common failure at $450 - $2,300, and because that same blower moves your summer cooling air, a weak ECM shows up as both poor heat and weak AC airflow. The integrated control board ties it all together and occasionally opens its 3-amp low-voltage fuse on a shorted thermostat wire (code 24). We carry igniters, flame sensors, and pressure switches on the truck, so most Pomona furnace repairs finish the same visit.
When is rollout (code 26) serious?
Always treat it seriously. A rollout switch opens when flames spill out of the burner box instead of drafting up the flue, which can mean a blocked flue, a failed inducer, or a cracked heat exchanger. A cracked heat exchanger is a carbon-monoxide risk, so we shut the furnace down, inspect, and tell you straight whether it is a repair or a replacement - we will not band-aid a safety fault. See the no-heat fix guide for the full lockout walkthrough.
What does a furnace install involve in an old Pomona home?
The historic core makes furnace work an access-and-venting puzzle as much as a swap. In 1890s-to-1940s Lincoln Park Craftsman and Wilton Heights bungalows, the furnace often lives in a cramped hall closet or a low attic, sharing a tight cabinet with the Carrier indoor coil and blower. A condensing 95-plus furnace needs a condensate drain and PVC venting that an old metal-flue chase may not accommodate without rework, which is one reason an 80 percent or a NOx-compliant mid-tier unit is frequently the practical choice here. We confirm combustion-air supply, gas-line sizing, and clearances before quoting, and we set the blower to match the shared coil so summer cooling airflow stays in spec.
Should you repair or replace a Carrier furnace in Pomona?
A 6-year-old furnace with a $200 flame sensor is an easy repair. A 20-year-old furnace throwing a rollout code with a suspect heat exchanger is a replacement, full stop. Because Pomona's heating season is short, we often steer homeowners toward a sensibly sized Ultra-Low NOx furnace rather than the most expensive modulating tier. Weigh it with the repair-or-replace guide.
| Tier and model | Best for | Installed lane |
|---|---|---|
| 80% (58TP and 58SC 80 percent furnaces) | Mild-winter homes, tight budget, simple venting | Lower $3,000 - $7,500 |
| 96% two-stage (59SC6 / 59TP6) | Quieter, more even heat, more runtime | Mid $3,000 - $7,500 |
| Ultra-Low NOx (59CU5) | California emissions compliance at value tier | Mid $3,000 - $7,500 |
| 98% modulating (59MN7) | Matched variable-speed comfort, heavy heat use | Top $3,000 - $7,500 |
Pomona Carrier furnace FAQ
My Carrier furnace flashes a code in Pomona - how do I read it?
Carrier furnaces show a two-digit code on the amber LED: count short flashes for the first digit, long flashes for the second, so three short plus four long is 34. Code 14 is an ignition lockout, 31 a pressure-switch fault, 13 or 33 a limit issue, and 26 a rollout switch - that last one means stop and have the heat exchanger inspected.
Why does my Carrier furnace ignite then shut off in seconds?
That short pattern usually means the flame sensor is dirty or weak (often a code 34, ignition proving failure). The burner lights, but the control cannot confirm flame, so it shuts the gas valve for safety. Cleaning or replacing the flame sensor fixes most of these; we check the igniter and gas pressure at the same time.
What does a new Carrier furnace cost in Pomona?
A Carrier furnace replacement runs $3,000 - $7,500 in Pomona. A value 80 percent furnace sits at the low end; a 59MN7 Infinity 98 modulating unit with a variable-speed ECM sits at the top. California emissions rules make Ultra-Low NOx models like the 59CU5 common here.
Do I need a high-efficiency furnace in mild Pomona?
Not always. Pomona winters are short, so an 80 percent furnace is frequently adequate and cheaper to install. A condensing 96 to 98 percent furnace makes more sense if you run a lot of heat or want the matched variable-speed comfort. We size the furnace to the actual heating load, not a sales tier.
What is a NOx furnace and do I need one in Pomona?
NOx is the nitrogen-oxide emission a gas burner produces, and California air-quality rules cap it, so Ultra-Low NOx furnaces like the 59CU5 are standard for replacements here. You are not choosing it for comfort; it is what keeps a new Pomona install code-compliant. We fit a NOx-compliant model at whatever efficiency tier suits your heating load and budget.
Should I just switch to a heat pump instead of replacing the furnace?
It is worth modeling. Pomona winters are mild enough that a Carrier heat pump can replace both the furnace and the AC with one unit, sometimes with an SCE rebate. The catch is electrical capacity and up-front cost ($6,000 - $16,000 versus $3,000 - $7,500 for a furnace alone). We lay out both paths so you can compare the numbers honestly before deciding.
